Range of Products >> Connector  >> DIP SWITCH  >>  DA6







Pitch

1.27mm

Operation Force / Temp.

800g Max  / -20°C~+80°C

Contact Resistance
50 mΩ ,max. at DC 100mA
Insulator Resistance
100 mΩ ,min. at DC 500V
Current Rating
100mA
Withstanding voltage
AC500V/1Min
Operating temperature
-55°C~+105°C
Contact
Phosphor Bronze , Gold Plated
Housing PBT & 30% Glass Fiber(UL94V-0)
Top Seal
Polyester Film










  How to Order:

DA6 02 C B B
Series No.   No.of Poles

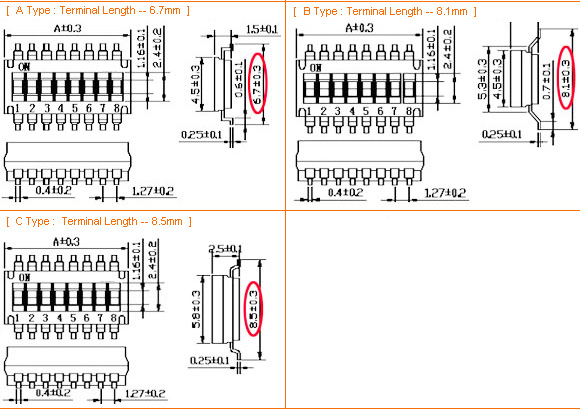

Item Type

  Seal Cover   Packing
        A:    6.7mm   A.  With it   A: Plastic Tube
        B:    8.1mm   B.  W/O it   B: Reel Packing
        C:    8.5mm
