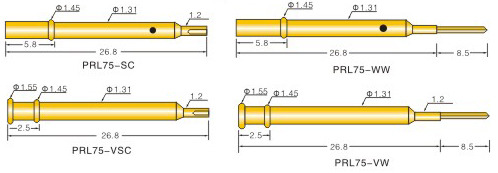

PL75 Series

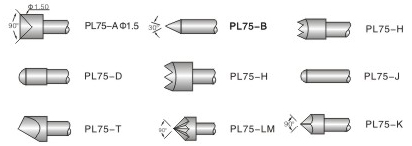

Available Head

Matching Sleeve

Recommended Min-Center	1.90mm
Full Travel	4.2mm
Contact Spring force	150g
Rating Current	3A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Piano Wire / Stainless with Gold Plated
Outside Sleeve	Phosphor bronze with Gold Plated
