	Test Probes

PL50 Series

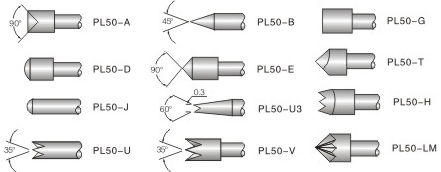

Available Head

Matching Sleeve

Recommended Min-Center	1.27mm
Full Travel	4.2mm
Contact Spring force	80g
Rating Current	3A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Stainless Steel
Outside Sleeve	Phosphor bronze with Gold Plated
