	Test Probes

P160 Series

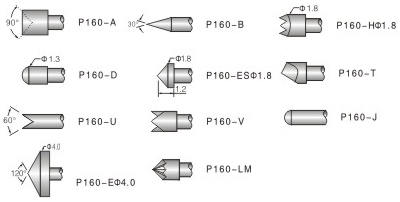

Available Head

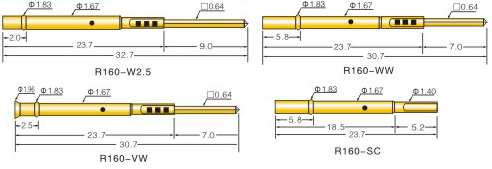

Matching Sleeve

Recommended Min-Center	2.54mm
Full Travel	4.20mm
Contact Spring force	250g
Rating Current	3A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Stainless Steel , Gold Plated
Outside Sleeve	Phosphor bronze with Gold Plated
