	Test Probes

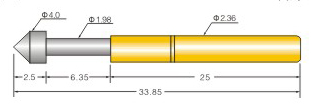

P156 Series

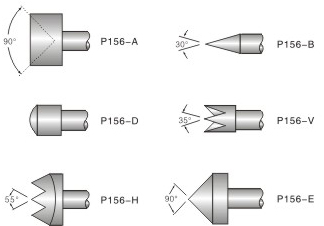

Available Head

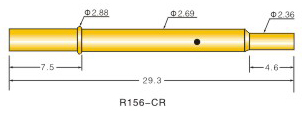

Matching Sleeve

Recommended Min-Center	3.97mm
Full Travel	6.35mm
Contact Spring force	250g
Rating Current	5A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Stainless Steel
Outside Sleeve	Phosphor bronze with Gold Plated
