	Test Probes

P125 Series

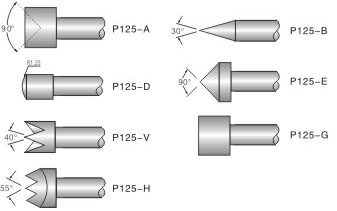

Available Head

Matching Sleeve

Recommended Min-Center	3.17mm
Full Travel	6.35mm
Contact Spring force	150g / 250g
Rating Current	5A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Stainless Steel
Outside Sleeve	Phosphor bronze with Gold Plated
