	Test Probes

P100 Series

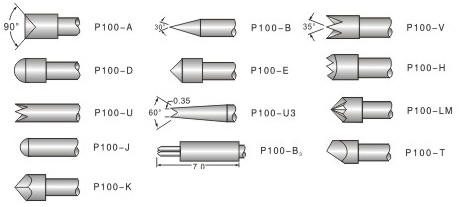

Available Head

Matching Sleeve

Recommended Min-Center	2.54mm
Full Travel	6.35mm
Contact Spring force	250g / 350g
Rating Current	3A
Contact Resistance	50mΩ

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Piano Wire with Gold Plated
Outside Sleeve	Phosphor bronze with Gold Plated
