	Test Probes

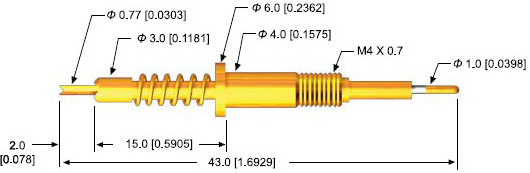

HP1 Series (High Current Probe)

Recommended Min-Center	7.00mm
Mounting Hole Size	4.00mm
Full Stoke	4.00mm
Contact Spring force	500g
Rating Current	6A

Probe Pole	Beryllium copper with Gold Plated
Inside Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Stainless Steel , Gold Plated
Outside Sleeve	Phosphor bronze with Gold Plated
