	Test Probes

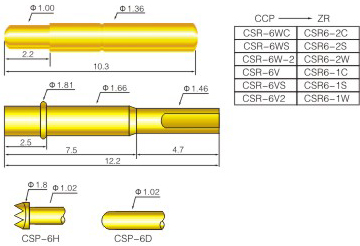

CSP-6 Series

Recommended Min-Center	2.54mm
Full Stroke	1.5mm
Contact Spring force	110g
Current Rating	3A
Contact Resistance	30mΩ

Probe Pole	Beryllium copper with Gold Plated
Probe Sleeve	Phosphor bronze with Gold Plated
Spring Materials	Piano Wire with Gold Plated
Outside Sleeve	Phosphor bronze with Gold Plated
