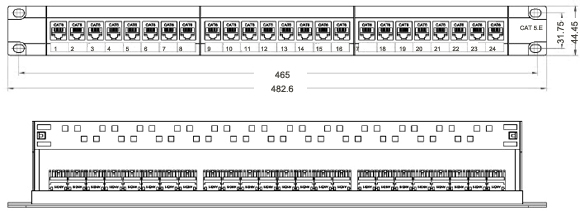

Product Name: Telecommunication Patch panel
P/N: NP-42
Specification and data sheet:
1. Operation Temperature: -20 to 60,
relative humidity:85%,Air pressure: 70-106Kpa
2. With Cat5e keystone modules used for 19 Inch
cabinet, Complete metalation and reed construction,
modularization design;
3. IDC: Phosphor bronze and gold plating
(20-50u),suitable diameter 0.4-0.6mm,durability 200
cycles;
4. Contact Pin: phosphor bronze and gold plating
(20-50u),mating durability not less than 750 cycles;
5. Anti-burn performance: plastic part made from PPO
and PC or PBT and ABS, meeting the international
standard;
6. Intermediate resistance: No more than 20mΩ
in normal atmosphere pressure (not including bulk
resistor);
7. Insulated resistance: no less than 1000mΩ
in normal atmosphere pressure.
8. The intensity of anti-currency:
DC1000V(AC700V),no puncture and flash-over
phenomenon in one mins. Accord with industry
standard.
9. Backwave loss: >34dB(1<f<100MHz)
10. Minimum near end cross talk loss
100MHz:>43dB(100MHz);Minimum far end cross talk loss
100MHz:>35.3dB(100MHz)
11. Label: clear label to ensure easy to manage;
12. Type: unshielded
13. Standard: designed by international ISO/IEC11801
and TIA/EIA568
|
