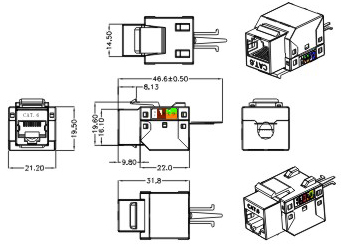

Range of Products >>Telecommunication  >> Keystone Jack  >>  N-4024




Main Description Of The Product:

1.  Shielded KJ. The products are used in the equipment rooms & work area as
 communication connectors of the intelligent buildings.                                                        2.  The product can resists the electro magnetic interference (EMI) effectively with
the compact full-closed shielding structure.                                                                                3.   According to the standard of ISO/IEC 11801:2002 Class E & ANSI/TIA/EIA 568-B.2-1
 CAT.6 standard.                                                                                                                        4.  According the regnirement of T568A & T568B. The T568A & T568B labels are sticked on the both sides of the product to give a exact guide when a engineer punches  the cables.

Technique Characteristics:

1.  Material of plastic parts: PC UL94V-0                                                                                        2.   8 pin of the RJ45 jack: Phosphor bronze with golden plated 3U、6U、15U、30U、50U option. Inserting duration: 750 times.                                                                                   3.  IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/24AWG cables. Punching duration: 250 times.                                                                                                          4. hing tool: Standard 110 punching tool.                                                                                     5.  Testing condition of transmitting capability: 250MHz
