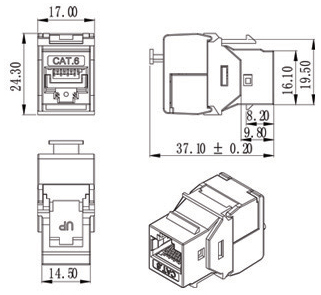

Range of Products >>Telecommunication >> Keystone Jack >>  N-4010




Main Description of The Product:

1 The product can resists the Electro Magnetic Interference (EMI)  effectively with the compact full-closed shielding structure.                                                                                                                                                              2 According with ISO/IEC 11801:2002 Class E& ANSI/TIA/EIA/568-B.2-1 CAT.6 standard.                                 3 The T568A &T568B labels are adhibited on the both side of the product to give an exact guide when the engineer punches the cables.                                                                                                                                          4 Connecting: RJ45 port for STP patch cord and the IDC port for STP horizontal cabling.                                   5 In accordance with RoHS.                                                                                                                                                6 Fitting for Cat.6 Cabling systems, can also be used on Cat.5 andCat.5e cabling systems.

Technique Characteristics:

1 Housing and other plastic parts' material: PC.                                                                                                            2 8 Pin of the RJ45 jack: Phosphor bronze with golden plated 3U 6U 15U 30U 50U at option. Inserting Dependablity:750times.                                                                                                                                                     3 IDC Clips: Tinned phosphor bronze pins. Fitting for 22AWG/23AWG/ 24AWG Cables. Punching Dependablity: 250times.                                                                                                                                                    4 Punching Tool: Standard 110 Punching tool.                                                                                                                5 Testing condition of transmitting capability: 250MHz
