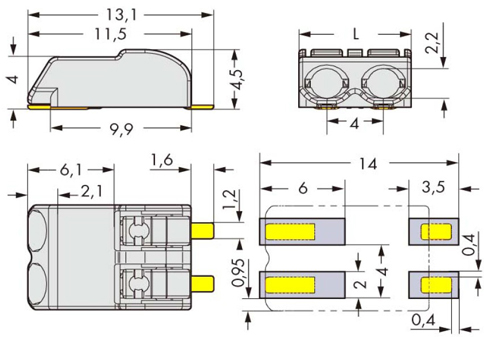

Product name	LED Lighting connector -- Spring Push wire / SMD type
Standard	CE
Rated voltage	300V
Rated current	9A
Wire range	0.2-0.75mm²
Ambient temperature	-40°C~+105°C
Strip length	6--7mm
Pitch	4mm(.100")
Poles	01P-03P
Housing	PA46 / PA6T,UL94V-0
Pin header	Brass,Tin plated
Packing information -- Reel packing
