Range of Products >>Terminal Block >> Fuse Terminal block >> GSS Series

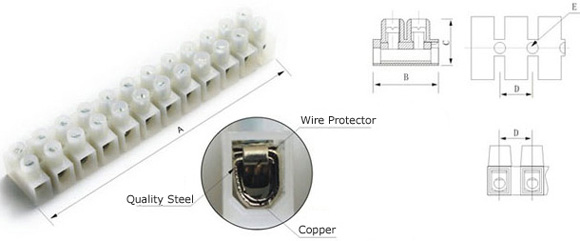

Part Number	Wire Size	Current/Volt	Screw	Dimension (mm)
				A	B	C	D (Pitch)	E	F
GSS100	1.5mm²	17.5A / 450V	M2.6 * 5	93.6	15.5	15.8	8.00	2.1	N/A
GSS100W	1.5mm²	17.5A / 450V	M2.6 * 5
GSS100H	1.5mm²	17.5A / 450V	M2.6 * 5			18.9
GSS100HW	1.5mm²	17.5A / 450V	M2.6 * 5

GSS200	2.5mm²	24A / 450V	M3.0 * 6	116.5	20.6	16.2	10.0	3.5	N/A
GSS200W	2.5mm²	24A / 450V	M3.0 * 6
GSS200H	2.5mm²	24A / 450V	M3.0 * 6			19.2
GSS200HW	2.5mm²	24A / 450V	M3.0 * 6

GSS300	6.0mm²	41A / 500V	M3.5 * 7	139.4	23.5	18.5	12.0	3.6	N/A
GSS300W	6.0mm²	41A / 500V	M3.5 * 7
GSS300H	6.0mm²	41A / 500V	M3.5 * 7			20.5
GSS300HW	6.0mm²	41A / 500V	M3.5 * 7

GSS400	10.0mm²	57A / 500V	M4.0 * 9	157.9	25.3	24.8	13.5	4.3	N/A
GSS400W	10.0mm²	57A / 500V	M4.0 * 9

GSS500	16.0mm²	76A / 500V	M5.0 * 9	170.5	30.2	25.3	14.5	4.3	N/A
GSS500W	16.0mm²	76A / 500V	M5.0 * 9

GSS600	25.0mm²	101A / 500V	M5.0 * 9	194.4	36.9	28.7	16.5	4.3	N/A
GSS600W	25.0mm²	101A / 500V	M5.0 * 9

"W" Means With wire protector , "H" Means with Higher Base, "HW" Means Higher base and wire protector

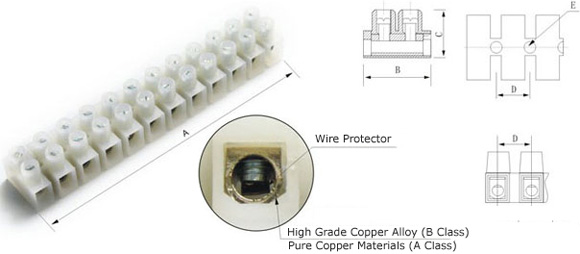

Part Number	Wire Size	Current/Volt	Screw	Dimension (mm)
				A	B	C	D (Pitch)	E	F
GSS8H	1.5mm²	17.5A / 450V	M2.6 * 5	93.6	17.0	13.3	8.00	2.9	N/A
GSS8HW	1.5mm²	17.5A / 450V	M2.6 * 5
GSS8HH	1.5mm²	17.5A / 450V	M2.6 * 5			14.5
GSS8HHW	1.5mm²	17.5A / 450V	M2.6 * 5

GSS10H	2.5mm²	24A / 450V	M3.0 * 6	116.5	20.2	15.8	10.0	3.6	N/A
GSS10HW	2.5mm²	24A / 450V	M3.0 * 6
GSS10HH	2.5mm²	24A / 450V	M3.0 * 6			17.0
GSS10HHW	2.5mm²	24A / 450V	M3.0 * 6

"W" Means With wire protector , "H" Means with Higher Base, "HW" Means Higher base and wire protector

How to order:

GSS100	–	12	P	–	PA66	–	2		A
Series No.		No.of Poles			Materials		Color		Contact Cage	A: Pure Copper
		01P ~ 12P			PA66		1. Grey 2.Blue			B: Copper Alloy
					PP		3. Black 4.Green
							5.Orange 6.Red
							7.Natural 8.White
