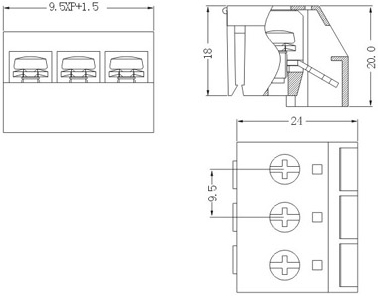

Range of Products >>Terminal Block >> Transformer Terminal Block  >>  GSO700







Standard
UL
CE
Rated voltage
300V
250V
Rated current
15A
24A
Wire range
24-14AWG
0.5-2.5mm2
Withstanding voltage
AC2000V/1Min
Torque

0.5Nm(10.5Lb-In.)

Ambient temperature
-40°C~+105°C
Pitch
9.50mm (.295")
Poles
03P
Housing
PA66,UL94V-0
Screws

M3.0,steel,Cr3+ Zn plated

Terminals
Brass, Tin-Plated











   How to order:



GSO700 03 P 5
Series No.   No. Of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
