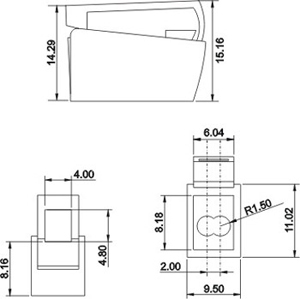

Range of Products >>Terminal Block >> Spring & Lighting TB  >>  GSL021







Standard
UL
IEC
Rated voltage
300V
450V
Rated current
20A
24A
Wire range
22-12AWG
0.2-2.5mm2
Withstanding voltage
AC2500V/1Min
Ambient temperature
-40°C~+105°C
Strip length
9-11mm
Pitch
9.50mm(.374")
Poles
1P
Housing
PA66+5%GF.,UL94V-0
Pin header
Phosphor Bronze
Wire guard
Stainless steel
