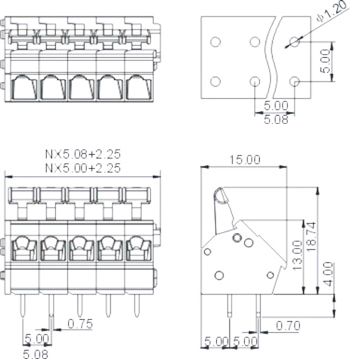

Range of Products >>Terminal Block >> Spring & Lighting TB >>  GSL013







Standard
UL
IEC
Rated voltage
300V
400V
Rated current
15A
18A
Wire range
28-12AWG
0.2-2.5mm2
Withstanding voltage
AC2000V/1Min
Ambient temperature
-40°C~+105°C
Strip length
5-6mm
Pitch
5.00 / 5.08mm(.100")
Poles
1P-XXP
Housing
PA66+5%GF.,UL94V-0
Pin header
Brass,Tin plated
Wire guard
Stainless steel







How to Order:

GSL013

5.00

02 P

1


Series No.   Pitch (mm)   No.of Poles   Color

Customer Request

    5.00

1. Grey     2.Blue


    5.08

3. Black   4.Green




5.Orange   6.Red




7.Natural   8.White
