Standard |
UL
|
IEC
|
Rated voltage |
300V
|
400V
|
Rated current |
15A
|
18A
|
Wire range |
28-12AWG
|
0.2-2.5mm2
|
Withstanding
voltage |
AC1250V/1Min
|
Ambient
temperature |
-40°C~+105°C
|
Strip length |
5--6mm
|

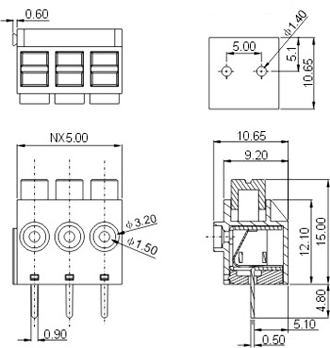

Pitch |
5.00mm(.100")
|
Poles |
1P-XXP
|
Housing |
PA66+5%GF.,UL94V-0
|
Pin header |
Brass,Tin plated
|
Wire guard |
Stainless steel
|
|
|
