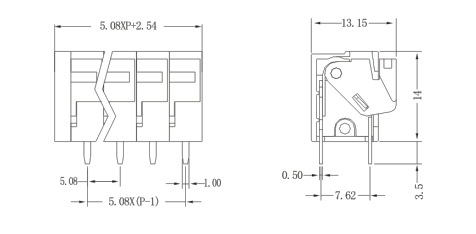

Range of Products >>Terminal Block >> Spring & Lighting TB  >>  GSL004S







Standard
UL
IEC
Rated voltage
300V
250V
Rated current
10A
15A
Wire range
22-16AWG
0.2-1.0mm2
Withstanding voltage
AC2000V/1Min
Ambient temperature
-40°C~+105°C
Strip length
10mm
Pitch
5.08 / 7.62mm(.100")
Poles
1P-XXP
Housing
PA66+5%GF.,UL94V-0
Pin header
Brass,Tin plated
Wire guard
Stainless steel





How to Order:r:

GSL004S 02 P

1


Series No.   No.of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
