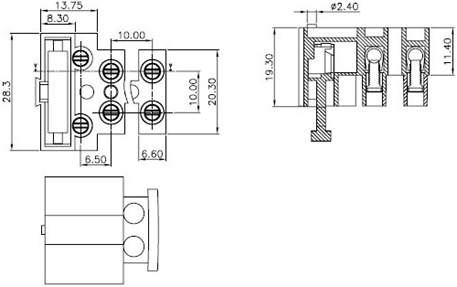

Range of Products >>Terminal Block >> Fuse Terminal block >>  GSF100







Standard
UL
VDE
Rated voltage
300V
300V
Rated current
15A
15A
Wire range
22-14AWG
0.5-4.0mm2
Withstanding voltage
AC2500V/1Min
Torque

  0.5Nm(4.5Lb-In.)

Ambient temperature
-40°C~+110°C
Strip length
6-7mm
Pitch
10.000mm (.374")
Poles
1P---10P
Fuse type

Ø5 * 20mm

Housing
PA66,UL94V-0
Screws

M3.0,steel,Cr3+ Zn plated

Cage

Brass Ni Plated

Contact
Brass, Tin Plated
Wire guard
Stainless steel









  How to order:



GSF100 03 P 1   A
Series No.   No.of Poles   Color   Wire Protector A: Yes
          1. Grey     2.Blue B: No
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
