Range of Products >>Terminal Block >> Barrier Terminal block >> GSA635S/825S/950S







Part Number GSA635S GSA825S GSA950S
Pitch 6.35mm 8.25mm 9.50mm
Voltage 300V 300V 300V
Current 17.5A 24A 25A
Wire Range 22-16AWG / 1.5mm² 22-12AWG / 2.5mm² 22-12AWG / 4.0mm²
Torque 0.4N.m (3.5Lb.in) 0.5N.m (4.4Lb.in) 1.2N.m (10.6Lb.in)
Housing PA66 UL94V-0
Solder Pins Brass,1.0t / 0.8t,Tin-Plated
Screws Steel, Ni-Plated,M2.5 Steel, Ni-Plated,M3.0 Steel, Ni-Plated,M4

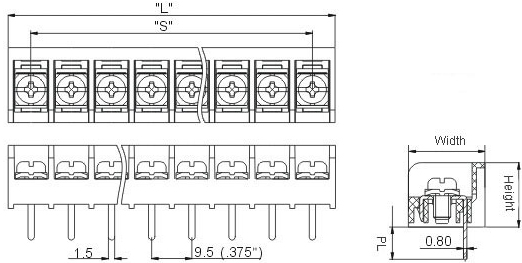

Size
" L " 6.35*(P-1) + 7.60 8.25*(P-1) + 9.75 9.5*(P-1) + 10.9
" S " 6.35*(P-1) 8.25*(P-1) 9.5*(P-1)
" Width " 14.00mm 15.20mm 17.8mm
" Height " 12.700mm 12.70mm 15.00mm
" PL " 4.80mm 4.60mm 7.50mm
Solder Pin 1.00 * 0.70 1.00 * 0.80 1.50 * 0.80









   How to order:



GSA635S 02 P 3
Series No.   No.of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
