Range of Products >>Terminal Block >> Barrier Terminal block >> GSA635R / 825R / 950R


Part Number GSA635R GSA825R GSA950R
Pitch 6.35mm 8.25mm 9.50mm
Voltage 300V 300V 300V
Current 17.5A 24A 25A
Wire Range 22-16AWG / 1.5mm² 22-12AWG / 2.5mm² 22-12AWG / 4.0mm²
Torque 0.4N.m ( 0.5N.m ( 1.2N.m (
Housing PA66 UL94V-0
Solder Pins Brass,1.0t / 0.8t,Tin-Plated
Screws Steel, Ni-Plated,M2.5 Steel, Ni-Plated,M3.0 Steel, Ni-Plated,M4

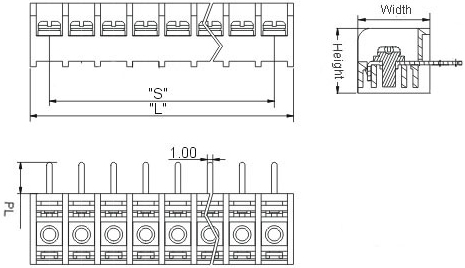

" L " 6.35*(P-1) + 7.60 8.25*(P-1) + 9.75 9.5*(P-1) + 10.9
" S " 6.35*(P-1) 8.25*(P-1) 9.5*(P-1)
" Width " 14.00mm 15.20mm 17.8mm
" Height " 12.700mm 12.70mm 15.00mm
" PL " 6.10mm 5.60mm 7.50mm
Solder Pin 1.00 * 0.70 1.00 * 0.80 1.50 * 0.80



   How to order:

GSA635R 02 P 3
Series No.   No.of Poles   Color   Customer Request
GSA635R         1. Grey     2.Blue
GSA825R         3. Black   4.Green
GSA950R         5.Orange   6.Red
          7.Natural   8.White
