Standard |
UL
|
VDE
|
Rated voltage |
300V
|
300V
|
Rated current |
15A
|
20A
|
Wire range |
24-16AWG
|
1.5mm2
|
Withstanding
voltage |
AC1250V/1Min
|
Ambient
temperature |
-40°C~+105°C
|
Strip length |
5-6mm
|
Torque |
0.2Nm(4.4Lb-In.) |

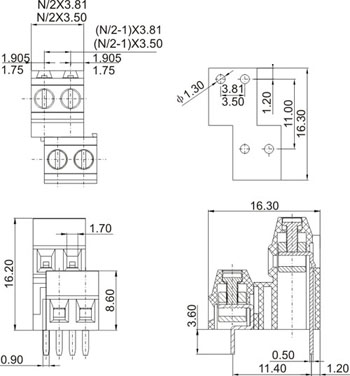

Pitch |
3.50 / 3.81 mm(.197")
|
Poles |
2P , 3P ---Any poles
|
Housing |
PA66,UL94V-0
|
Screws |
M2.0,steel,Cr3+
Zn plated |
Solder Pins |
Brass, Tin plated
|
Contact Cage |
Brass, Ni plated
|
|
|
