Part Number |
GSA28S |
GSA38S |
GSA48S |
GSA58S |
Pitch |
7.62mm |
8.25mm |
9.50mm |
10.00mm |
Voltage |
300V |
300V |
300V |
300V |
Current |
15A |
20A |
25A |
32A |
Wire Range |
22-12AWG / 2.5mm² |
22-12AWG / 4.0mm² |
Torque |
0.5N.m (4.4Lb.in) |
1.2N.m (10.6Lb.in) |
Housing |
PA66 UL94V-0 |
Solder Pins |
Brass,1.0t / 0.8t,Tin-Plated |
Screws |
Steel, M3,Ni-Plated |
Steel, M4,Ni-Plated |

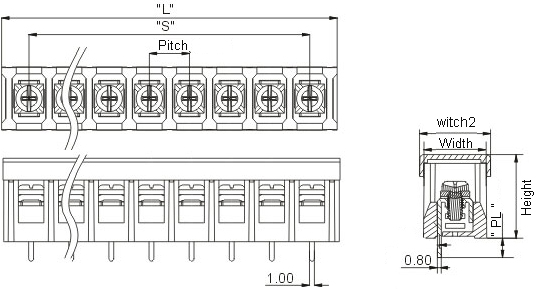

Size |
|
" L " |
7.62*P + 3.05 |
8.25*P + 3.18 |
9.5*P + 3.16 |
10*P + 3.16 |
" S " |
7.62*(P-1) |
8.25*(P-1) |
9.5*(P-1) |
10*(P-1) |
" Width " |
12.00mm |
12.00mm |
12.80mm |
12.80mm |
"Width2" |
14.00mm |
14.00mm |
15.00mm |
15.00mm |
" Height " |
17.30mm |
17.30mm |
19.30mm |
19.30mm |
" PL " |
4.00mm |
4.00mm |
4.00mm |
4.00mm |
Solder Pin |
1.00 * 0.80 |
1.10 * 0.80 |
1.50 * 0.80 |
1.50 * 0.80 |
|
|
