Range of Products >>Terminal Block >> Barrier Terminal block >>  C Series (Middle Pin + Cover)







Part Number GSA28C GSA38C GSA48C GSA58C
Pitch 7.62mm 8.25mm 9.50mm 10.00mm
Voltage 300V 300V 300V 300V
Current 15A 20A 25A 32A
Wire Range 22-12AWG / 2.5mm² 22-12AWG / 4.0mm²
Torque 0.5N.m (4.4Lb.in) 1.2N.m (10.6Lb.in)
Housing PA66 UL94V-0
Solder Pins Brass,1.0t / 0.8t,Tin-Plated
      Screws Steel, M3,Ni-Plated Steel, M4,Ni-Plated

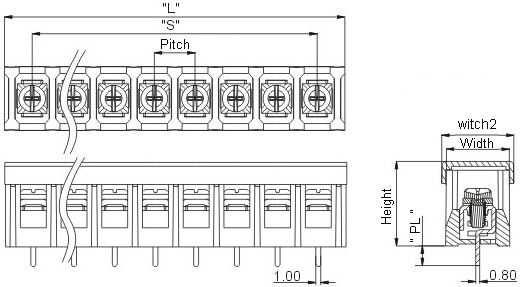

Size
" L "

7.62*P + 3.05

8.25*P + 3.18 9.5*P + 3.16 10*P + 3.16
" S " 7.62*(P-1) 8.25*(P-1) 9.5*(P-1) 10*(P-1)
" Width " 12.00mm 12.00mm 12.80mm 12.80mm
"Width2" 14.00mm 14.00mm 15.00mm 15.00mm
" Height " 17.30mm 17.30mm 19.30mm 19.30mm
" PL " 4.00mm 4.00mm 4.00mm 4.00mm
Solder Pin 1.00 * 0.80 1.10 * 0.80 1.50 * 0.80 1.50 * 0.80









   How to order:



GSA28C 02 P 3
Series No.   No.of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
