														| Part Number | GSA25R | GSA35R | GSA45R | GSA55R | GSA65R |
														| Pitch | 7.62mm | 8.25mm | 9.50mm | 10.00mm | 11.00mm |
														| Voltage | 300V | 300V | 300V | 300V | 300V |
														| Current | 15A | 20A | 25A | 32A | 32A |
														| Wire Range | 22-12AWG / 2.5mm² | 22-12AWG / 4.0mm² |
														| Torque | 0.5N.m (4.4Lb.in) | 1.2N.m (10.6Lb.in) |
														| Housing | PA66 UL94V-0 |
														| Solder Pins | Brass,1.0t /
														0.8t,Tin-Plated |
														| Screws | Steel, M3,Ni-Plated | Steel, M4,Ni-Plated |

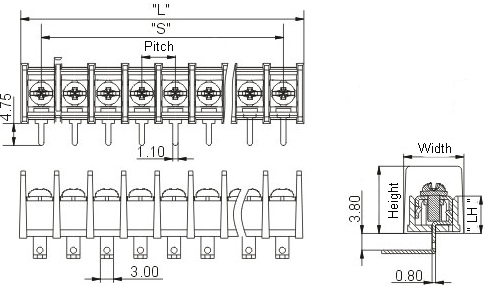

														| " L " | 7.62*(P-1) + 9.12 | 8.25*(P-1) + 10.15 | 9.5*(P-1) + 11.5 | 10*(P-1) + 12.5 | 11*(P-1) + 13 |
														| " S " | 7.62*(P-1) | 8.25*(P-1) | 9.5*(P-1) | 10*(P-1) | 11*(P-1) |
														| " Width " | 13.50mm | 13.50mm | 16mm | 15.6 | 17.3 |
														| " Height " | 14.80mm | 15.10mm | 17.80mm | 18.4 | 18 |
														| " LH " | 8.50mm | 8.50mm | N/A | 10.3mm | N/A |
														| Solder Pin | 1.10 * 0.80 | 1.10 * 0.80 | 1.50 * 0.80 | 1.50 * 0.80 | 2.0 * 1.0 |  |  |  |  |  |
