Part Number |
GSA25HW |
GSA35HW |
GSA45HW |
GSA55HW |
GSA65HW |
Pitch |
7.62mm |
8.25mm |
9.50mm |
10.00mm |
11.00mm |
Voltage |
300V |
300V |
300V |
300V |
300V |
Current |
15A |
20A |
25A |
32A |
32A |
Wire Range |
22-12AWG / 2.5mm² |
22-12AWG / 4.0mm² |
Torque |
0.5N.m (4.4Lb.in) |
1.2N.m (10.6Lb.in) |
Housing |
PA66 UL94V-0 |
Solder Pins |
Brass,1.0t / 0.8t,Tin-Plated |
Screws |
Steel, M3,Ni-Plated |
Steel, M4,Ni-Plated |

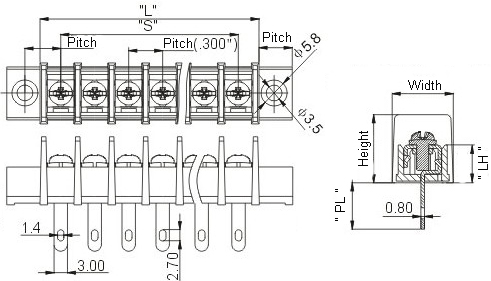

Size |
|
" L " |
7.62*(P-1) + 9.12 |
8.25*(P-1) + 10.15 |
9.5*(P-1) + 11.5 |
10*(P-1) + 12.5 |
11*(P-1) + 13 |
" S " |
7.62*(P-1) |
8.25*(P-1) |
9.5*(P-1) |
10*(P-1) |
11*(P-1) |
" Width " |
13.50mm |
13.50mm |
16mm |
15.6 |
17.3 |
" Height " |
14.80mm |
15.10mm |
17.80mm |
18.4 |
18 |
" LH " |
8.50mm |
8.50mm |
N/A |
10.3 |
N/A |
" PL " |
6.00mm |
6.00mm |
12.50mm |
12.50mm |
13.50mm |
Solder Pin |
3.00*0.80
|
3.00*0.80
|
3.50*0.80
|
3.50*0.80
|
4.00*0.80 |
|
|
