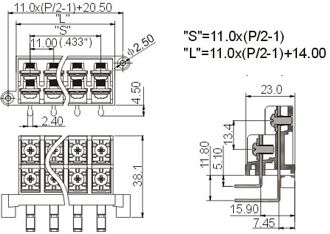

Range of Products >>Terminal Block >> Barrier Terminal block >>  GSA2100A







Standard
UL
CE
Rated voltage
300V
250V
Rated current
30A
40A
Wire range
18-10AWG
6.0mm2
Withstanding voltage
AC2000V/1Min
Torque

1.2Nm(10.6Lb-In.)

Ambient temperature
-40°C~+80°C
Pitch
11.00mm (.295")
Poles
4P,6P,8P
Housing
PC,UL94V-0
Screws

M4.0,steel,Cr3+ Gold plated

Terminals
Brass, Gold-Plated









   How to order:



GSA2100A 02 P 3
Series No.   No.of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
