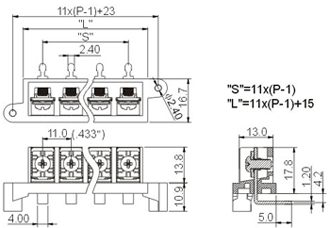

Range of Products >>Terminal Block >> Barrier Terminal block >>  GSA1100B








Standard

UL

CE

Rated voltage

300V

250V

Rated current

30A

40A

Wire range

18-10AWG

6.0mm2

Withstanding voltage

AC2000V/1Min

Torque

1.2Nm(10.6Lb-In.)

Ambient temperature

-40°C~+80°C

Pitch

11.00mm (.295")

Poles

2P --11P

Housing

PC,UL94V-0

Screws

M4.0,steel,Cr3+ Gold plated

Terminals

Brass, Gold-Plated










   How to order:



GSA1100B 02 P 3
Series No.   No.of Poles   Color   Customer Request
          1. Grey     2.Blue
          3. Black   4.Green
          5.Orange   6.Red
          7.Natural   8.White
