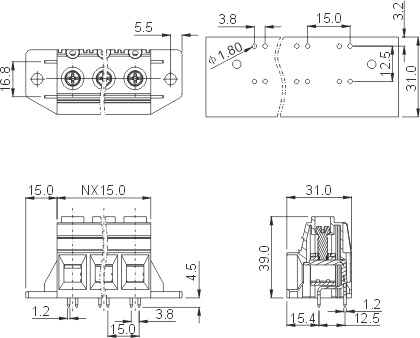

Range of Products >>Terminal Block >> Screw Clamp TB  >>  GS032W







Standard
UL
VDE
Rated voltage
600V
1000V
Rated current
90A
115A
Wire range
20-2AWG
4-35mm2
Withstanding voltage
AC3500V/1Min
Ambient temperature
-40°C~+105°C
Strip length
18mm
Torque 2.0Nm(17.5Lb-In.)
Pitch
15.0mm(.197")
Poles
2P , 3P ---Any poles
Housing
PA66,UL94V-0
Screws

M5,steel,Cr3+ Zn plated

Solder Pins
Brass, Tin plated
Contact Cage
Brass, Ni plated







  How To Order: :

GS032W

15.0

02 P

4



A


Series No.   Pitch(mm)   No.of Poles   Color   Screw Type A: Slot "-"
    15.0

1. Grey     2.Blue

B. Crossing "+"



3. Black   4.Green




5.Orange   6.Red








7.Natural   8.White
