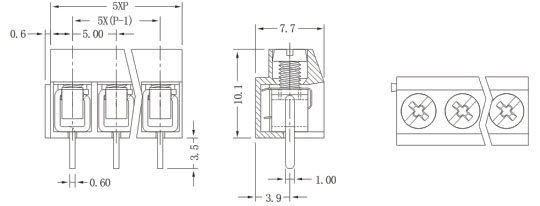

Range of Products >>Terminal Block >> Wire-protector TB  >>  GS006S







Standard
UL
VDE
Rated voltage
300V
450V
Rated current
10A
18A
Wire range
26-14AWG
0.5-2.5mm2
Withstanding voltage
AC2000V/1Min
Ambient temperature
-40°C~+105°C
Strip length
6-7mm
Torque 0.4Nm(4.4Lb-In.)
Pitch
5.00 / 7.50 / 10.00 mm(.100")
Poles
2P , 3P ---Any poles
Housing
PA66,UL94V-0
Screws

M2.5,steel,Cr3+ Zn plated

Contact
Brass,Tin plated
Wire guard
Stainless steel







  How To Order: :

GS006S

5.00

02 P

4




Series No.   Pitch(mm)   No.of Poles   Color   Customer Request
    5.00

1. Grey     2.Blue



    7.50

3. Black   4.Green


    10.00

5.Orange   6.Red




7.Natural   8.White
