Standard |
UL
|
VDE
|
Rated voltage |
300V
|
250V
|
Rated current |
17.5A
|
24A
|
Wire range |
20-18AWG
|
0.2-2.5mm2
|
Withstanding
voltage |
AC2500V/1Min
|
Ambient
temperature |
-30°C~+120°C
|
Strip length |
5-6mm
|
Torque |
0.5Nm(4.4Lb-In.) |

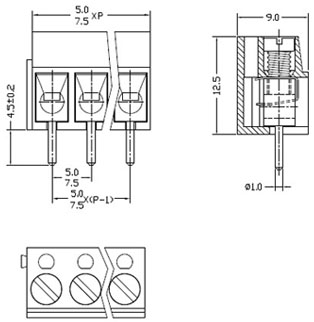

Pitch |
5.00 / 7.50 / 10.00 mm(.100")
|
Poles |
2P , 3P ---Any poles
|
Housing |
PBT,UL94V-0
|
Screws |
M3,steel,Cr3+
Zn plated |
Contact |
Brass,Tin plated
|
Wire guard |
Stainless steel
|
|
|
