Standard	UL	VDE
Rated voltage	400V	450V
Rated current	57A	57A
Wire range	22-12AWG	10mm²
Withstanding voltage	AC2500V/1Min
Torque	0.8Nm(6.0Lb-In.)
Ambient temperature	-----
Strip length	-----

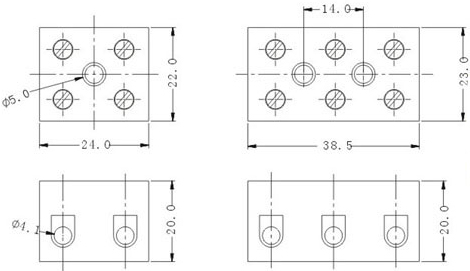

Pitch	14.0mm(.374")
Poles	2P , 3P
Housing	Ceramic ( Steatite Ceramic & Alumina)
Screws	M3.5,steel,Cr³⁺ Zn plated
Contact	Brass, Nickel Plated
Wire guard	Stainless steel
