Contact Resistance |
100 mΩ ,max. at DC
100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC
500V
|
Current Rating |
3 AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating temperature |
-25°C~+85°C
|
Contact |
Phosphor Bronze
|
Housing |
Nylon (UL94V-0)
|
|
|
|
|
|
|

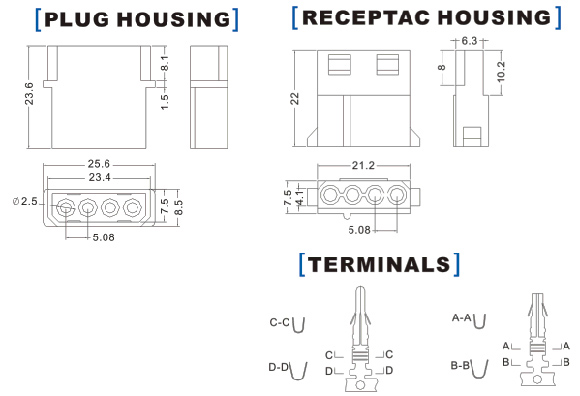

How to Order:
GSC12 |
– |
H |
– |
M |
Series No. |
|
H:
Housing |
|
M: Plug
Housing |
|
|
|
|
F:
Receptac |
If
Terminals, Please
order
GSC12-Terminal-"T"
( "T"--Tin
Plated , "G"-- Gold
Flash plated ) |
|
|
|
|
|
