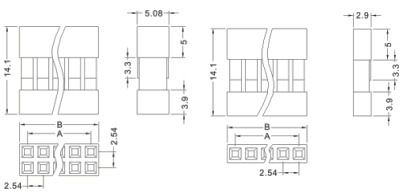

Range of Products >> Connector >> wire to board Connector >> GSC1

Contact Resistance	100 mΩ ,max. at DC 100mA
Insulator Resistance	1000 mΩ ,min. at DC 500V
Current Rating	3 AMP
Withstanding voltage	AC1000V/1Min
Operating temperature	-25°C~+85°C
Contact	Phosphor Bronze
Housing	Nylon (UL94V-0)

How to Order:

GSC1 – S – 10

Series No.
S: Single Row 2--80 Poles

D: Double Row

If Terminals,Please order GSC1-Terminal-"T" ( "T"--Tin Plated , "G"-- Gold Flash plated )
