Contact Resistance |
20 mΩ ,max. at DC
100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC
500V
|
Current Rating |
3 AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating temperature |
-40°C~+105°C
|
Contact |
Brass
|
Housing |
PBT & 30% Glass
Fiber(UL94V-0)
|
|
|
|

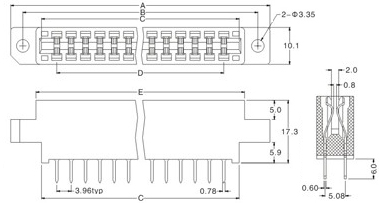

Position |
A |
B |
C |
D |
E |
40 |
100.88 |
94.38 |
81.10 |
75.24 |
86.98 |
44 |
108.80 |
102.30 |
91.70 |
83.16 |
94.90 |
56 |
132.56 |
126.06 |
115.46 |
106.92 |
118.66 |
60 |
140.18 |
133.68 |
123.08 |
114.84 |
126.58 |
72 |
163.94 |
157.44 |
146.84 |
138.60 |
150.34 |
86 |
191.96 |
185.46 |
174.86 |
166.32 |
178.06 |
100 |
129.68 |
213.18 |
202.58 |
194.04 |
205.78 |
|
|
|
How to Order: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DK925 |
– |
40 |
|
G |
– |
|
|
Series No. |
|
Poles |
|
G:
Gold Plated |
Color |
|
|
|
|
T: Tin Plated |
K: Black |
|
|
|
|
|
G: Grey |
|
|
|
|
