Contact Resistance |
20 mΩ ,max. at DC
100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC
500V
|
Current Rating |
2 AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating temperature |
-40°C~+105°C
|
Contact |
Brass
|
Housing |
PBT & 30% Glass
Fiber(UL94V-0)
|
|
|
|

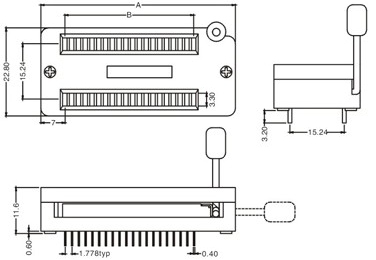

Position |
A |
B |
|
Position |
A |
B |
28 |
40.50 |
23.12 |
56 |
65.40 |
48.00 |
40 |
51.20 |
33.78 |
|
|
|
|
|
|
How to Order: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DK803 |
– |
28 |
|
G |
– |
G |
|
Series No. |
|
Poles |
|
G: Gold Plated |
Color |
|
|
|
|
T: Tin Plated |
K: Black |
|
|
|
|
|
G: Green |
|
|
|
