Contact Resistance |
20 mΩ ,max. at DC
100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC
500V
|
Current Rating |
2 AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating temperature |
-40°C~+105°C
|
Contact |
Brass
|
Housing |
PBT & 30% Glass
Fiber(UL94V-0)
|
|
|
|

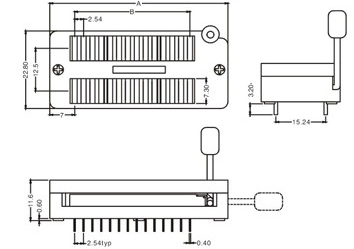

Position |
A |
B |
|
Position |
A |
B |
24 |
45.10 |
27.94 |
40 |
65.50 |
48.26 |
28 |
50.20 |
33.02 |
48 |
75.60 |
58.42 |
32 |
55.30 |
38.10 |
|
|
|
|
|
|
How to Order: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DK802 |
– |
28 |
|
G |
– |
G |
|
Series No. |
|
Poles |
|
G: Gold Plated |
Color |
|
|
|
|
T: Tin Plated |
K: Black |
|
|
|
|
|
G: Green |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
