Contact Resistance |
20 mΩ ,max. at DC
100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC
500V
|
Current Rating |
2 AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating temperature |
-40°C~+105°C
|
Contact |
Brass
|
Housing |
PBT & 30% Glass
Fiber(UL94V-0)
|
|
|
|

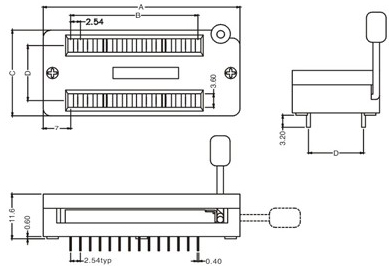

Position |
A |
B |
C |
D |
|
Position |
A |
B |
C |
D |
14 |
33.20 |
15.24 |
14.90 |
7.62 |
28 |
51.00 |
30.02 |
22.80 |
15.24 |
16 |
35.70 |
17.78 |
14.90 |
7.62 |
32 |
56.10 |
38.10 |
22.80 |
15.24 |
20 |
40.80 |
22.86 |
14.90 |
7.62 |
40 |
66.20 |
48.26 |
22.80 |
15.24 |
24A |
45.90 |
27.94 |
14.90 |
7.62 |
48 |
76.40 |
58.42 |
22.80 |
15.24 |
24B |
45.90 |
27.94 |
22.80 |
15.24 |
|
|
|
|
|
|
|
|
How to Order: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DK801 |
– |
28 |
|
G |
– |
G |
|
Series No. |
|
Poles |
|
G: Gold Plated |
Color |
|
|
|
|
T: Tin Plated |
K: Black |
|
|
|
|
|
G: Green |
|
|
|
