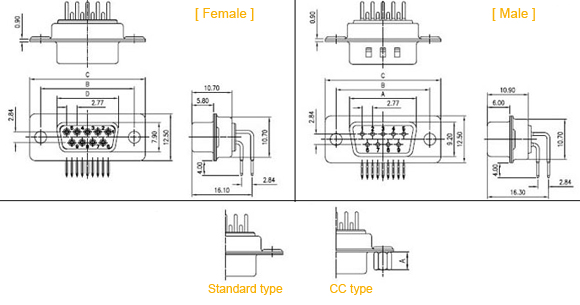

Range of Products >> Connector  >> D-sub Series >>  DS1034-01







Contact Resistance
20 mΩ ,max. at DC 100mA
Insulator Resistance
1000 mΩ ,min. at DC 500V
Current Rating
40AMP
Withstanding voltage
AC500V/1Min
Operating temperature
-45°C~+110°C
Contact
Brass or Phosphor Bronze
Housing
PBT & 30% Glass Fiber(UL94V-0)





  How To Order: :

DS1034-01

F

F

B

S

Series No.   No of Poles

F: Female



Color

  S: Standard
    09 , 15

M: Male



    B.   Blue

C: CC Type

    25 , 37





    K.   Black




    W.  White
