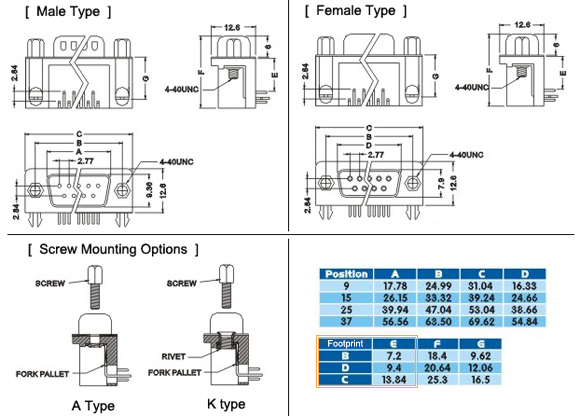

Range of Products >> Connector  >> D-sub Series >>  DR


Contact Resistance
30 mΩ ,max. at DC 100mA
Insulator Resistance
1000 mΩ ,min. at DC 500V
Current Rating
Withstanding voltage
Operating temperature
Brass or Phosphor Bronze
PBT & 30% Glass Fiber(UL94V-0)



   How to Order:
DR 15   F   D B A
Series No.   No.of Poles Item Option   Foot Print   Color   Screw Type   Customer Request
        F: Female   B: 7.2mm   B. Blue   A. A type
        M: Male   D: 9.4mm   K. Black   K. K type
          C: 13.84   W. White
