Contact Resistance |
30 mΩ ,max. at DC 100mA
|
Insulator Resistance |
1000 mΩ ,min. at DC 500V
|
Current Rating |
5AMP
|
Withstanding voltage |
AC1000V/1Min
|
Operating
temperature |
-55°C~+105°C
|
Contact |
Brass
|
Housing |
PBT & 30% Glass Fiber(UL94V-0)
|
|
|
|
|
|
|

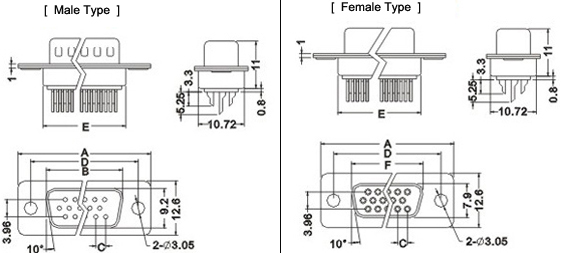

Position |
A |
B |
C |
D |
E |
F |
15P |
30.9 |
17.7 |
2.29 |
24.99 |
19.30 |
16.33 |
26P |
39.1 |
25.3 |
2.29 |
33.32 |
27.5 |
24.7 |
44P |
53.0 |
39.0 |
2.29 |
47.04 |
41.3 |
38.4 |
62P |
69.3 |
55.4 |
2.41 |
63.50 |
57.7 |
54.8 |
|
|
|
How
To Order: : |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DHS |
– |
15 |
|
F |
– |
B |
– |
|
|
Series No. |
|
No. of Poles |
|
Item Type |
|
Color |
|
Customer Request |
|
|
15 / 26 |
|
F: Female |
|
B. Blue |
|
|
|
44 / 62 |
|
M: Male |
|
K. Black |
|
|
|
|
|
|
|
W. White |
|
|
|
|
