Range of Products >> Connector  >> DIP SWITCH  >>  DA2


Operation Force / Temp.

800g Max  / -20°C~+80°C

Contact Resistance
50 mΩ ,max. at DC 100mA
Insulator Resistance
100 mΩ ,min. at DC 500V
Current Rating
Withstanding voltage
Operating temperature
Phosphor Bronze , Gold Plated
Housing PBT & 30% Glass Fiber(UL94V-0)
Top Seal
Polyester Film

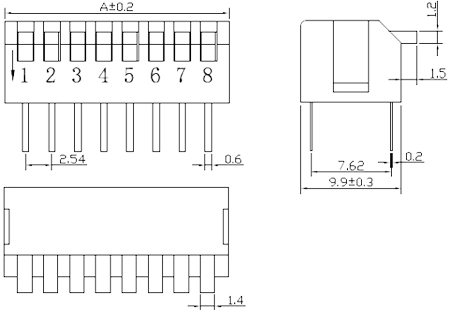

Position A Position A Position A Position A
2P 6.64 5P 14.2 8P 21.88 12P 32.04
3P 9.18 6P 16.8 9P 24.42
4P 11.72 7P 19.34 10P 26.96
  How to Order:
DA2 02 B 2
Series No.   No.of Poles


  Seal Cover   Customer Request
        B. Blue   1.  With it
        R: Red   2.  W/O it
        K: Black
