Range of Products >> Connector  >> Box Header Series >>  IDC-2.54

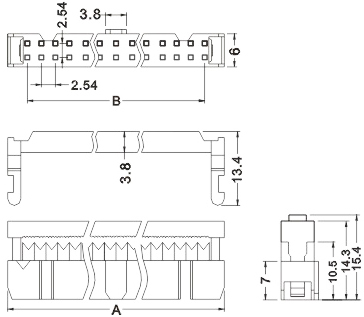

Product Name: Box header | IDC Socket (FC)      Part number: IDC-2.54 Series

Position A B   Position A B
8P 14.73 7.62 30P 42.67 35.56
10P 17.27 10.16 34P 47.75 40.64
14P 22.35 15.24 40P 55.37 48.26
16P 14.89 17.78 50P 68.07 60.96
20P 29.97 22.86 60P 80.77 73.66
26P 37.59 30.48 64P 85.85 78.74


   How to Order:

IDC-2.54 – 10   K   GF – A　
Series No.   Poles

Color



G: Gold Plated

 Strain Relief Option


K:  Black

   GF: Gold Flash A: With it


G: Grey

   T:  Tin Plated B: W/O it
