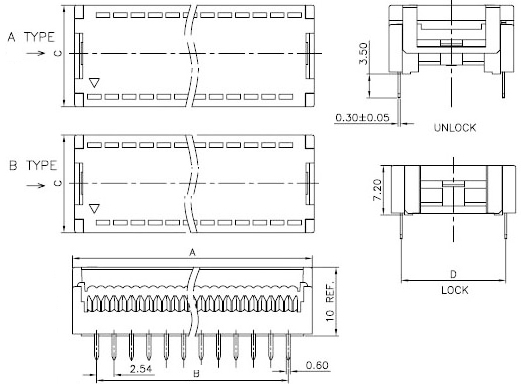

Position |
A |
B |
C |
D |
10P |
17.16 |
10.16 |
10.60 |
7.62 |
14P |
22.24 |
15.24 |
10.60 |
7.62 |
16P |
24.78 |
17.78 |
10.60 |
7.62 |
18P |
27.32 |
20.32 |
10.60 |
7.62 |
20P |
29.86 |
22.86 |
10.60 |
7.62 |
24P |
34.94 |
27.94 |
18.18 |
15.24 |
28P |
40.02 |
33.02 |
18.18 |
15.24 |
40P |
55.26 |
48.26 |
18.18 |
15.24 |
|
|
|
How to Order: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FDC3 |
– |
14 |
|
K |
|
GF |
– |
A |
|
Series No. |
|
Poles |
Color |
|
G: Gold
Plated |
Pin Option |
|
|
|
|
K: Black |
|
GF: Gold
Flash |
A: Type A |
|
|
|
|
G: Grey |
|
T: Tin
Plated |
B: Type B |
|
|
|
|
