Range of Products >> Connector  >> Box Header Series >>  EJR(2.54mm)










Product Name: Box header | Ejector (2.54mm)            Part number: EJR Series

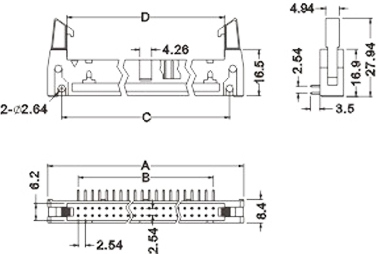

Position A B C D   Position A B C D
10P 32.00 10.16 21.84 17.96 30P 57.40 35.56 47.24 43.36
12P 34.54 12.70 24.38 20.50 34P 62.48 40.64 52.32 48.44
14P 47.08 15.24 26.92 23.04 40P 70.10 48.26 59.94 56.60
16P 39.62 17.78 29.46 25.58 50P 82.80 60.96 72.64 68.76
20P 44.70 22.86 34.54 30.66 60P 95.50 73.66 85.34 81.46
26P 52.32 30.48 42.16 38.28 64P 100.58 78.74 90.42 86.54





   How to Order:

EJR –  10   K   GF –
Series No.   Poles

Color



G: Gold Plated

 Customer Request






 K: Black

   GF: Gold Flash






 G: Grey

   T:  Tin Plated
