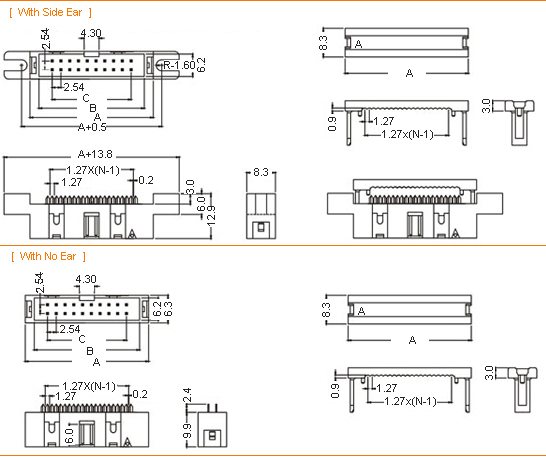

Product Name: Box header | Ejector
Part number: BHC Series
Position |
A |
B |
C |
|
Position |
A |
B |
C |
8P |
20.46 |
15.26 |
7.62 |
26P |
43.32 |
38.12 |
30.48 |
10P |
23.00 |
17.80 |
10.16 |
30P |
48.40 |
43.20 |
35.56 |
14P |
28.08 |
22.88 |
15.24 |
30P |
53.46 |
48.28 |
40.64 |
16P |
30.62 |
25.42 |
17.78 |
40P |
61.10 |
55.90 |
48.26 |
20P |
35.70 |
30.50 |
22.86 |
50P |
73.80 |
68.60 |
60.96 |
|
|
